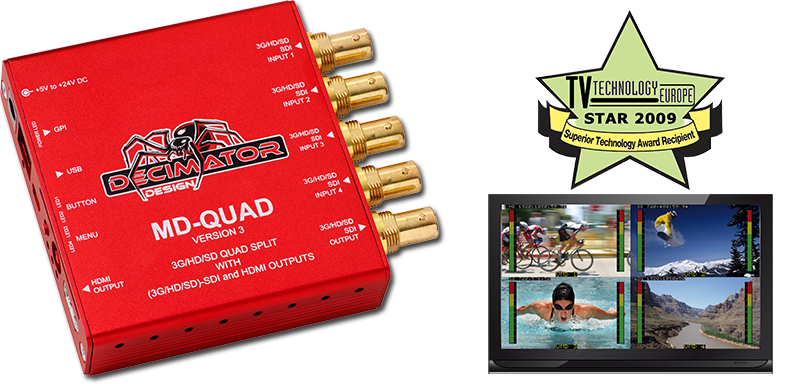

1 to 4 Channel Multi-Viewer / Quad-Split
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts
MSRP US$1295

• Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
• Professional 3G/HD/SD Test Pattern Generator featuring:

• 26 Selectable Output Formats
• 54 Test Patterns including Luma and Chroma Zone-plates

• Audio Tone Generator

• Horizontal and/or Vertical image flipping per window

• Low cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer

• Custom Layouts with various standard layouts

• 16 Character UMD overlay per window with individual enables, custom positioning and size

• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

• Tallies can be applied to either Tally Boxes (Default) or Border

• Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)

• Load and restore Custom Layouts

• Fast switching between inputs using Full-Screen scaling

• Selectable output format in both Full-Screen and Multi-Viewer mode

• Low latency buffering for each input allowing non-synchronous inputs

• Linked (3G/HD/SD)-SDI and HDMI outputs

• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

• Variable aspect ratios per window

• Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

• An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control

• USB port for control and updates

• Locking DC Power Socket

• 5 GPI on standard RJ-45 connector connector for Tallies and Remote Switching

• RS422/485 is also include on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol

• The following is included with the unit:
  Power Supply, HDMI Cable, USB Cable and Mounting Bracket

MINIATURE (3G/HD/SD)-SDI MultiViewer / Quad-Split
with (3G/HD/SDI)-SDI and HDMI Outputs
(Replaced by MD-QUAD V3 hardware)

NEW FEATURES:
(Excluding units with serials starting with MQS)

• Professional 3G/HD/SD Test Pattern Generator featuring:

• 26 Selectable Output Formats
• 54 Test Patterns including Luma and Chroma Zone-plates

• Audio Tone Generator
• In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output

• On-screen audio id pop-up when selection audio source in Quad-Split mode

• On-screen display pop-up when using the rotary to allow for use when without a PC

FEATURES:

• Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer

• Selectable output format in Quad-Split mode

• Dynamic UMD and Tally support via RS422/485 pins on RJ45 connector

• GPI on RJ-45 for remote switching and Tallies

• Low latency buffering for each input allowing non-synchronous inputs

• Linked (3G/HD/SD)-SDI and HDMI outputs

• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

• 8-Channel Audio metering for each quadrant with:

    - The first two audio groups individually selectable
    - Vertical or Horizontal Bars
    - AES/EBU, VU, Extended VU, BBC, EBU, DIN and
      NORDIC Scales
    - Bar & Float, Bar only or
      Float only (Float is not available for MQS serials)
    - Transparency adjustment
    - Separate Bar and Float Ballistics control
    - Adjustable Reference level
    - Red, Yellow and Green Range adjustment
    - Bar thickness adjustment
    - Margin adjustment

• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

• Variable aspect ratios per quadrant

• All 4 inputs can be displayed simultaneously on a single output

• Pass-Through mode allowing any of the 4 inputs to be selected for output

• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

• On-Screen 16 character IDs (UMDs) for each input

• An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control

• USB port for control and updates

• Locking DC Power Socket

• The following is included with the unit:
  Power Supply, HDMI Cable, USB Cable and Mounting Bracket

• The first two audio groups individually selectable
• Vertical or Horizontal Bars
• AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales

• Bar & Float, Bar only or Float only (Float is not available for MQS serials)

• Transparency adjustment

• Separate Bar and Float Ballistics control

• Adjustable Reference level

• Red, Yellow and Green Range adjustment

• Bar thickness adjustment

• Margin adjustment

• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

• Variable aspect ratios per quadrant

• All 4 inputs can be displayed simultaneously on a single output

• Pass-Through mode allowing any of the 4 inputs to be selected for output

• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

• On-Screen 16 character IDs (UMDs) for each input

• An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control

• USB port for control and updates

• Locking DC Power Socket

• The following is included with the unit:
  Power Supply, HDMI Cable, USB Cable and Mounting Bracket
